Plugging in the hardware

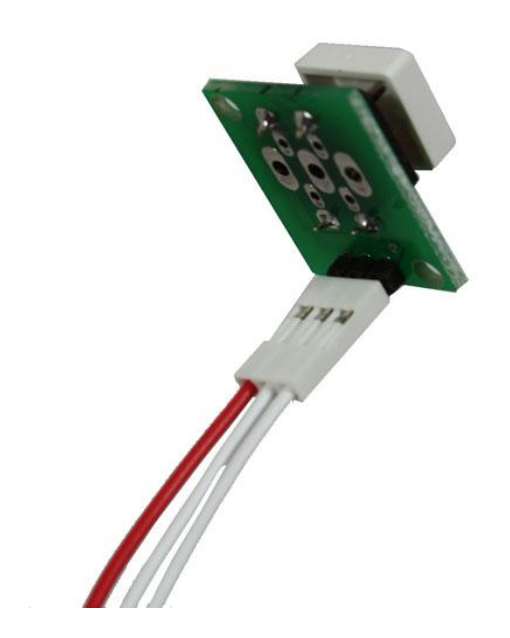

Example: To connect the individual hardware components to the DIO Board, use the cable assemblies that come with your DIO purchase. On both the components and the board itself, there are 3-pin connectors which simply plug into the connectors on the ends of the cable assemblies.
Each component takes a different amount of cables
depending on the functions available. The small
LED’s plug directly into the wire assembly, and don’t
come with a small mounting board. The larger
components such as the rotary selectors have
multiple pin connectors to accommodate the many
options for programming the different positions of the selectors
