Mounting the EFIS

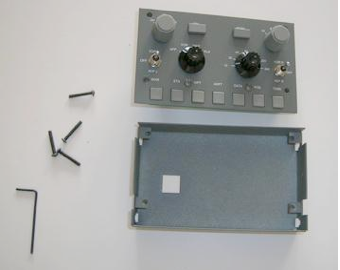

1. Remove the four corner screws from the front panel.
2. Remove the electronics from the back case.

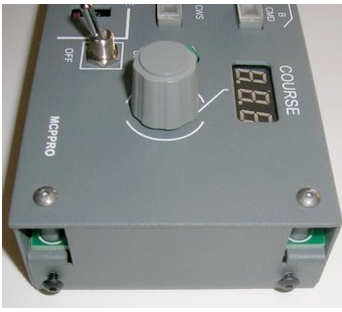

3. Insert the two 44 X ¼” screws into the end you wish to mount you EFIS to the MCP Pro.

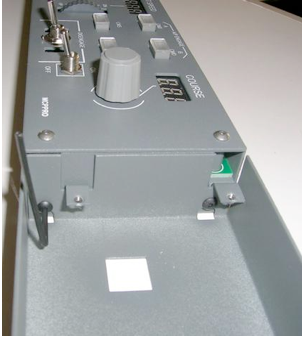

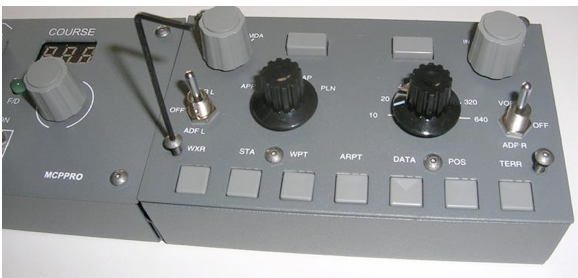

4. Mount the case to the MCP Pro case as shown below and tighten the screws.
5. Replace the electronics onto the case and replace the four screws.
6. Plug the USB cable “A” connector end (rectangular) to a USB port on your computer or hub. The message “New Hardware Found” may appear briefly, showing that the GF-EFIS was detected.
*To configure your GF-EFIS for use with your favorite flight simulator, run the GF-Config program. Either click Start-->Programs-->GoFlight to access the GoFlight program or …
*Double-click on the GoFlight Config icon on your desktop that was created.
7. Click on the graphic illustration of the EFIS. It will become highlighted in a red outlined border, Then assign the desired functions as desired via the drop-down list provided. Several add-on aircraft packages are available for Microsoft Flight Simulator 2004 (FS9) or FSX that provide a much fuller simulation of these advanced aircraft flight management and navigation systems. This allows high usage of most, if not all, MCP Pro controls.
For more information, we encourage you to visit the following software publishers’ Websites:
Prosim 737 Avonics www.prosim737.com
AeroSyetems 737 Avonics www.aerosoft.com.au
GF-Pmdg 737 interface www.pollypot-software.org.uk
CRGSim 777 Avonics www.crgsim.com
Ifly 737 www.iflysimsoft.com
8. Please see the GoFlight Technical section of our website for more information on this module.
