The “GFRP-2” System is calibrated through the Windows
game controller settings. To calibrate your yoke, first plug
it in to an available USB port using the included cable.
Once the “GFRP-2” is connected, navigate to the control
panel and open “Find Devices and Printers”. In Windows
8, typing “Devices” in the search menu on the start screen
can quickly access this
menu.

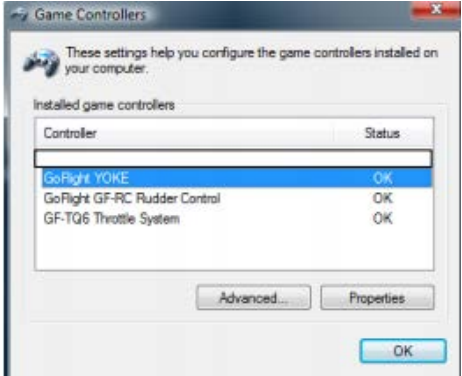

Once the screen
appears, find “GoFlight GF-RC Rudder Control” in the device
list and click “Properties”. You will then be given an option to
calibrate or test the controller. This menu will allow you to test
and configure each axis of the system.
To ensure your Rudder System is properly configured, ensure
that a full range of motion on each axis is reflected as such on
the calibration test screen. If an axis is not configured properly,
the “Calibrate” menu screen will allow you to adjust the
calibration of each individual axis.
