GFRP-2 Rudder Assembly:

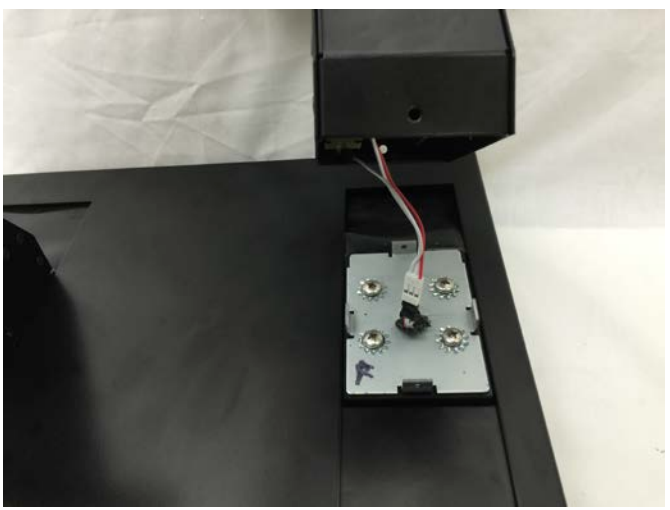

With the rudder base facing toward you, plug the pedals into the base (RED wire facing to the
right.) Then place the pedal on the rudder base and use the (8) - 6/32 screws, to attach the
pedals to the base.
Assembling the GF-RP-2 Rudder Pedal System Print
Created by: GoFlight Archive
