Mounting the MCP Pro



Mounting Options:

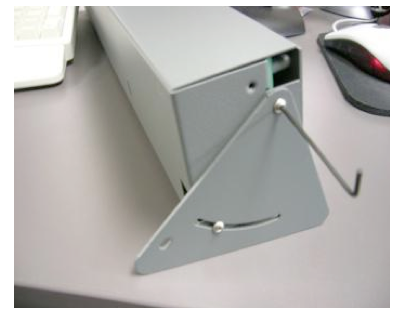

1. Desktop: Included are two triangular brackets. Attach these brackets as shown to both ends:









2. AC Rack Mounting:










Remove the MCP Pro’s electronic from the case buy removing the four front

panel screws. Attach the case to the AC Rack with the enclosed screw as shown:






Place the electronic back into the case and attach with the four screws.





3. Over Head Rack Mounting:



Attach the two triangular brackets as shown below. Remove the two end screws of the Over Head Rack.

Attach the MCP Pro to the OHR with the two 6-32 by ½ “ (included) screws as

shown below:
















4. Plug the USB cable “B” connector end (square) into the connector on the back of the

MCP Pro circuit board.



5. Plug the USB cable “A” connector end (rectangular) to a USB port on your computer. The message “New Hardware Found” will appear briefly, showing that the MCP Pro was detected. When the operating system recognizes the MCP Pro, you will see the MCP Pro’s “wakeup” sequence – the LED displays light up with messages “123” in the 3-digit displays and “12345” in the 5-digit displays, sweeping across left to right, followed by a quick left-to-right sweep of all the lighted pushbuttons. This sequence will repeat any time you disconnect and re-connect the module, and each time you start up your computer. It indicates that the MCP Pro is ready to use.



6. After you install the GF-MCP Pro software and connect the MCP Pro for the first time, run the GF-Config program, which is located in your Programs menu under “GoFlight”. Verify that GF-Config displays an icon representing the MCP Pro unit on the left-hand side of the window. Left-click on the MCP Pro icon to show the configuration options in the right-hand side of the window.
